Managed DSLS

Follow these steps to configure OpenLM to monitor license usage and retrieve statistics from the Managed DSLS license manager.

Requirements

Before starting, make sure you have:

• OpenLM Server v2.x installed on a machine in your organization or an OpenLM Cloud (SLMC) account
• OpenLM Broker v22.6 or higher installed on a machine with access to the dslsstat utility

Monitoring capabilities

Monitoring capabilities depend on the query method:

1. Querying remotely through OpenLM Server:
   • License totals
   • License usage
2. Querying locally through OpenLM Broker:
   • All of the preceding, plus:
     • Buffered communication to overcome temporary network failures
     • Ability to start/stop the license manager service remotely
     • License denial reporting
     • 1-minute resolution for license usage reports
     • Reading Managed DSLS license and log files
     • Viewing license file content in EasyAdmin

OpenLM Broker configuration

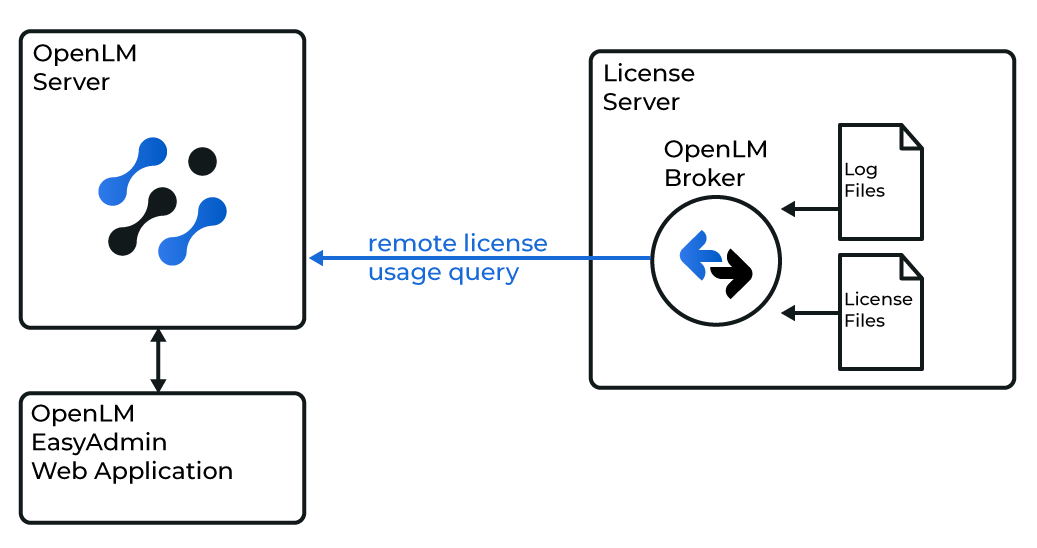

Diagram of how OpenLM interfaces with the Managed DSLS license manager

note

Install and configure OpenLM Broker on the same machine as Managed DSLS before proceeding.

Automatic configuration

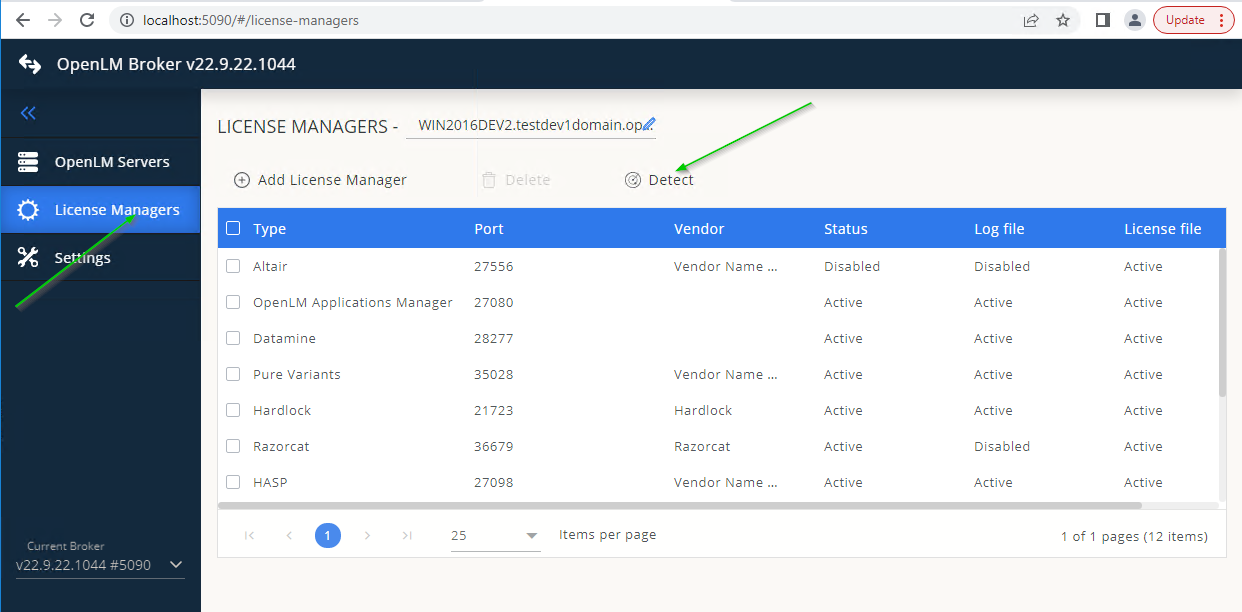

1. Access the Broker web UI on the Managed DSLS machine.
2. Go to License Managers and select Detect.


If the service is running, Broker will auto-configure all required settings.
For accuracy, review the following Manual configuration section.

Manual configuration

1. Open Broker and go to License Managers → Add License Manager.
2. From LM Type, select DSLS Cloud, enter the port number, and select Add.
3. Go to the Commands tab and set the executable path to the Managed DSLS utility.
4. If running as a service, turn Use operating system start/stop commands file on and set the service name.
5. Turn Data Inquiry on and select Execute to test the connection.
6. Go to the Vendors tab → Add Vendor, enter the vendor name, and select Continue.
7. Go to the Log Files tab → Add Log File, select the latest Managed DSLS log file, select the vendor, and select Continue.
8. Select Save.

OpenLM Server configuration

Automatic configuration through EasyAdmin

1. Open EasyAdmin in your browser or from Windows Start → OpenLM → EasyAdmin User Interface.
2. In License Servers, select the "servers pending approval" message.
3. Select the Managed DSLS entry and select Approve.

Verify your configuration

1. Open EasyAdmin.
2. Go to Start → Widgets → License Servers.
3. Confirm the Managed DSLS license manager appears in the list with a green status circle.

note

A new connection may take up to 3 minutes to display an active status.
