Oracle Enterprise Manager

Follow these steps to configure OpenLM to monitor license usage and retrieve license statistics from Oracle Enterprise Manager.

Requirements

1. OpenLM Platform

2. OpenLM Broker v25.x or higher installed on the same machine as Oracle Enterprise Manager, and approve it in Broker Hub.

   Monitoring capabilities

   Item	Value
   LM Type in the Broker	Oracle Enterprise Manager
   License totals	No
   License usage	Yes
   Denials	No
   Borrowing	No
   Expiration date	No
   Redundancy	No
   Report resolution	Seconds

   Using the Broker also enables buffered communication and allows remote start and stop of the license manager service.



   OpenLM Broker must be installed and configured to report to OpenLM Server before proceeding

Configuring via Broker UI

1. Open the Broker web UI at http://localhost:5090. If the default port is in use, try 5091 or 5092.

2. Go to License Managers -> Add License Manager.

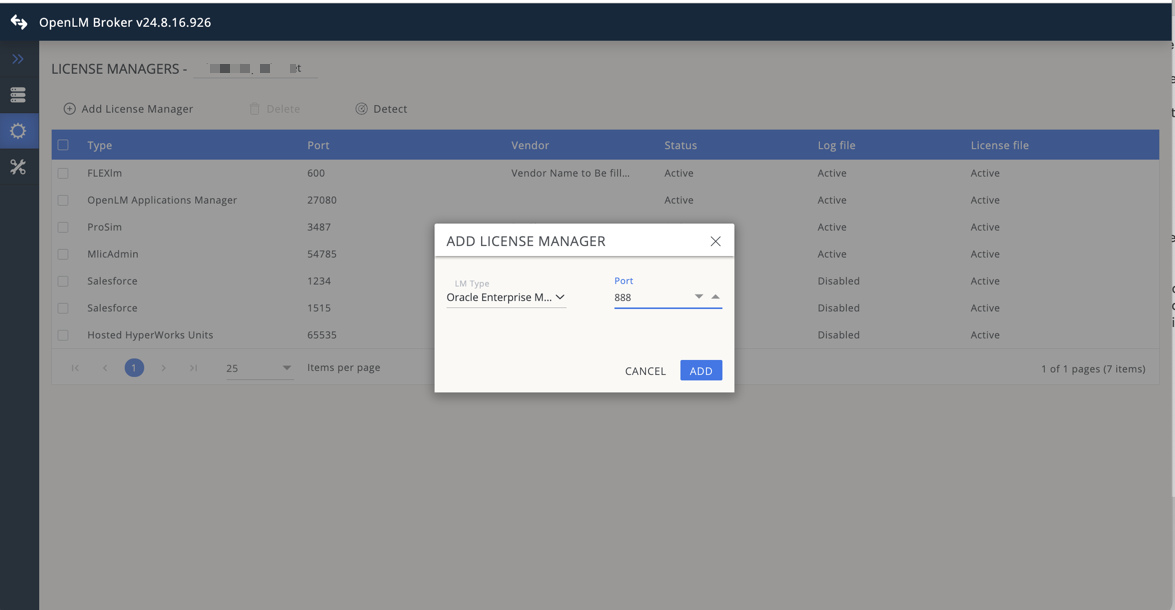

3. Select Oracle Enterprise Manager from the drop-down list, enter the port number, and click Add.

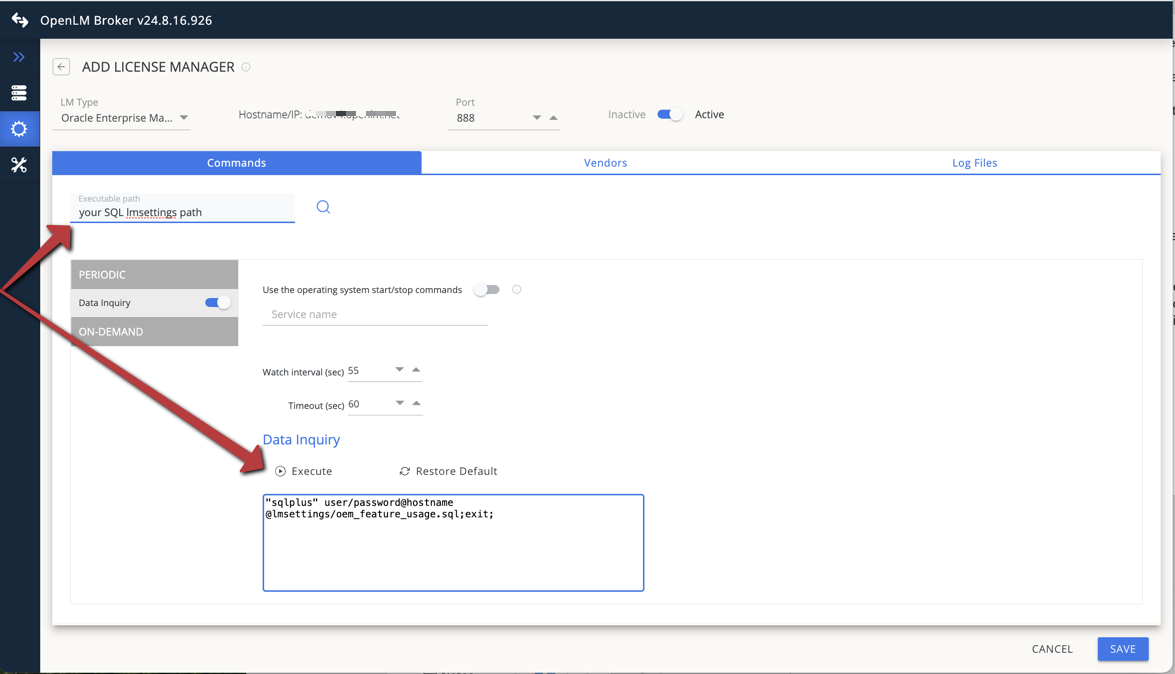

4. In Commands, set the Executable path to the folder containing the Oracle Enterprise Manager SQL file in lmsettings and click Execute.

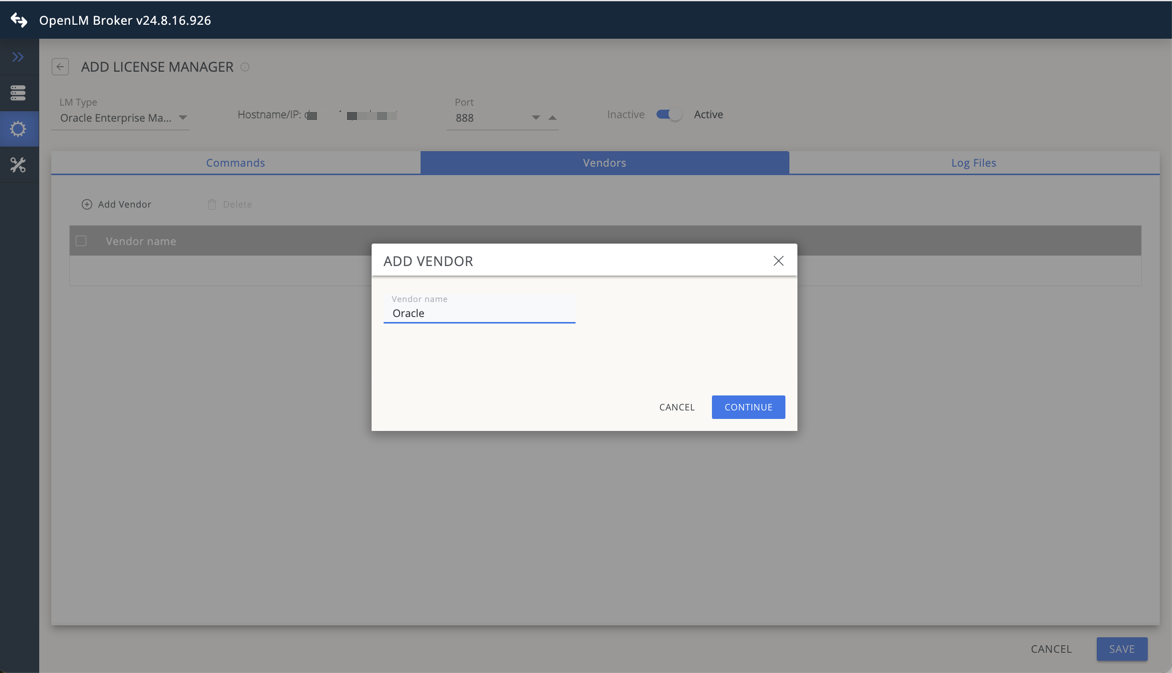

5. In Vendors, click Add Vendor, enter Oracle, and click Continue.



6. Click Save.

Configure OpenLM Platform

1. Log in to OpenLM Platform.

2. From Menu, go to License Servers.



3. On left menu, select Pending Server

4. On the list, select the Oracle Enterprise Manager license manager and click on Approve and Merge



5. In OpenLM Web Interface -> Menu -> License Servers Live -> Server Statistics.

6. Ensure Oracle Enterprise Manager appears in the list with a green status indicator.

Note: It can take up to 3 minutes for the status to update for new connections.
