ESPRIT

Diagram of how OpenLM Broker interfaces with ESPRIT License Manager and OpenLM Server

Requirements

1. OpenLM Platform
2. OpenLM Broker v25.x or higher installed on the same machine as ESPRIT, and approve it in Broker Hub.

Configuring via Broker UI

1. Open OpenLM Broker Web UI -> License Managers tab (http://localhost:5090/#/license-managers).

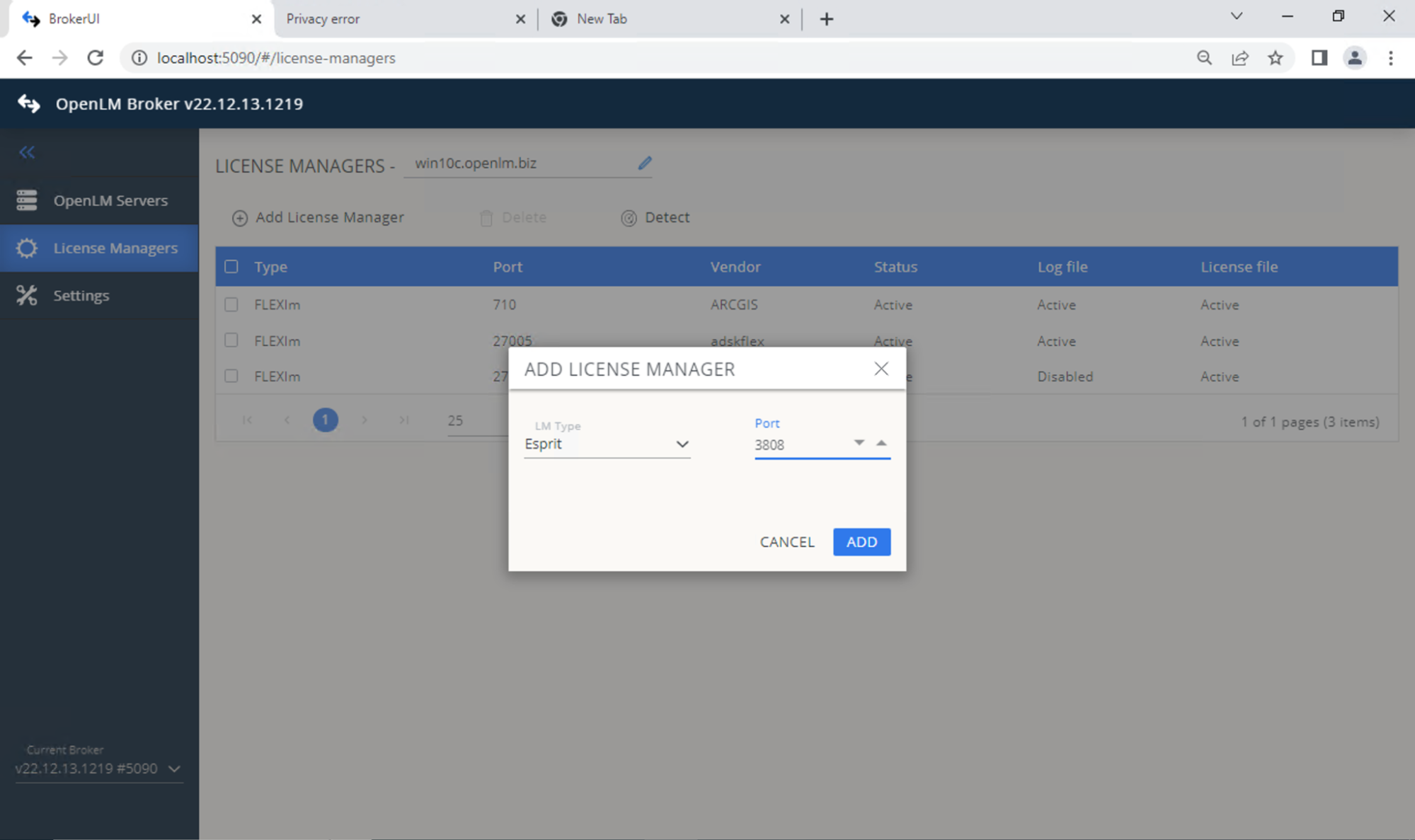

2. Click Add License Manager.

3. Enter any port number and select ESPRIT as the license manager type.



4. In the Settings tab, set the license file path:

   • Auto-detect
   • Or set manually -> Continue

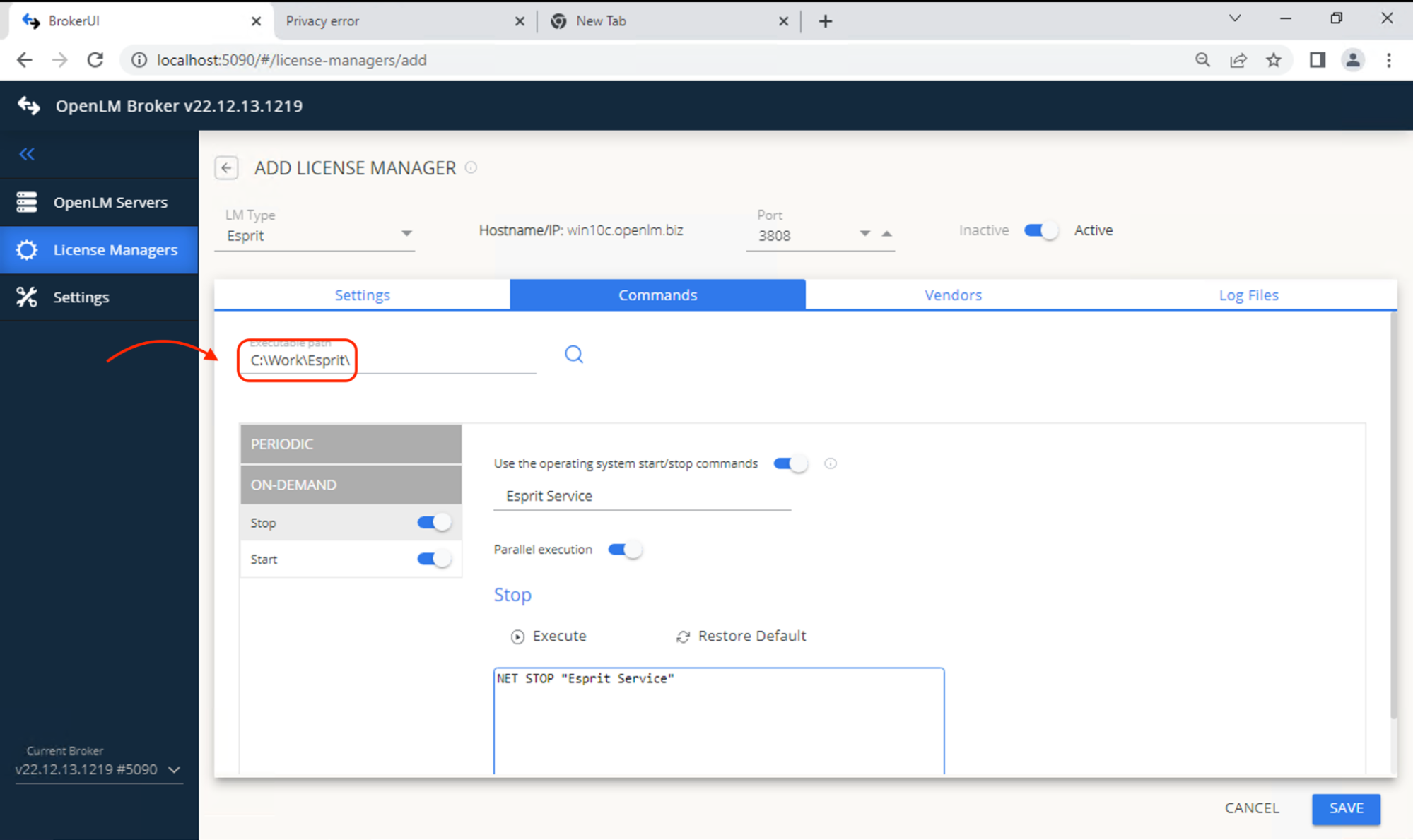

5. Go to Commands tab and set the ESPRIT executable path.

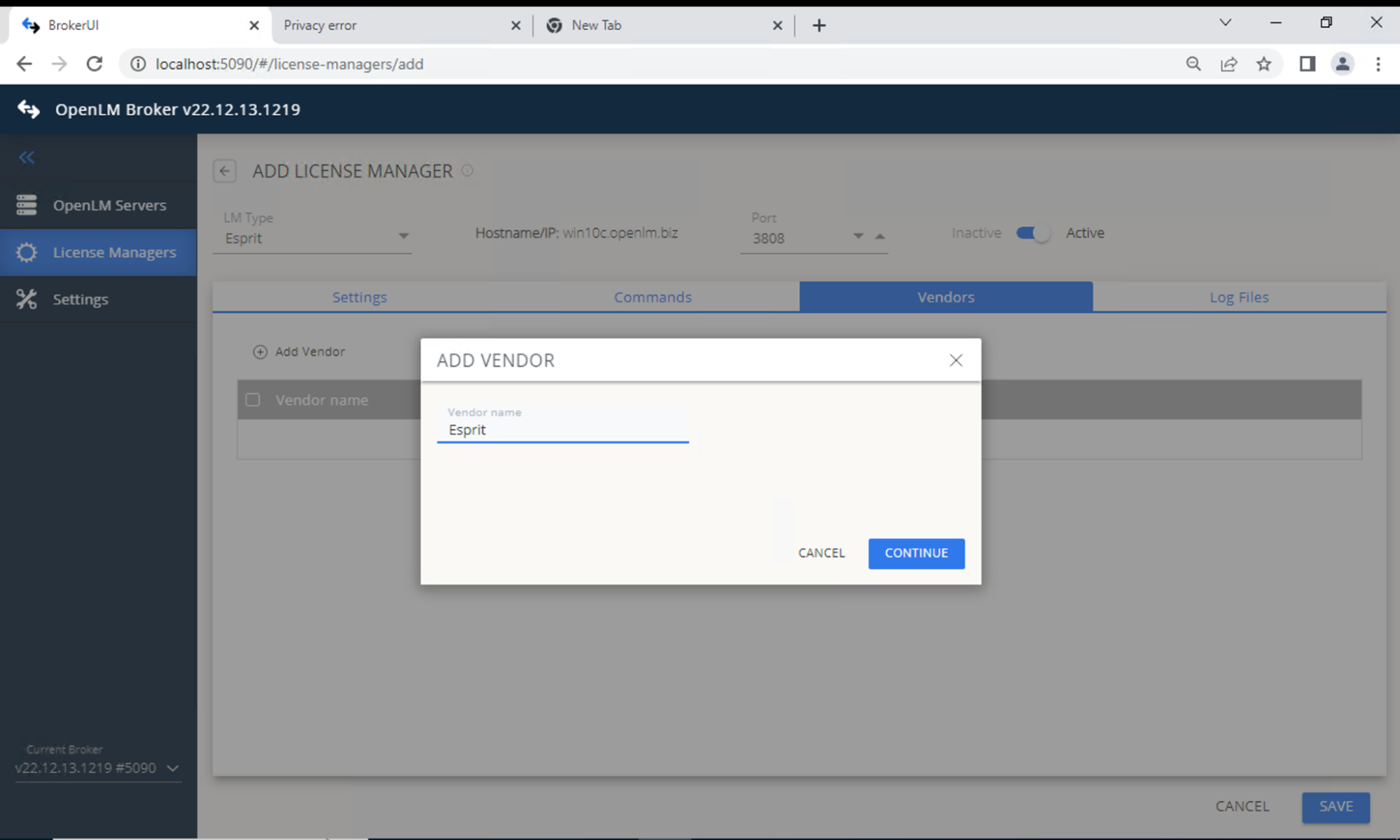

6. Go to Vendors tab -> Add Vendor. Enter a descriptive name.

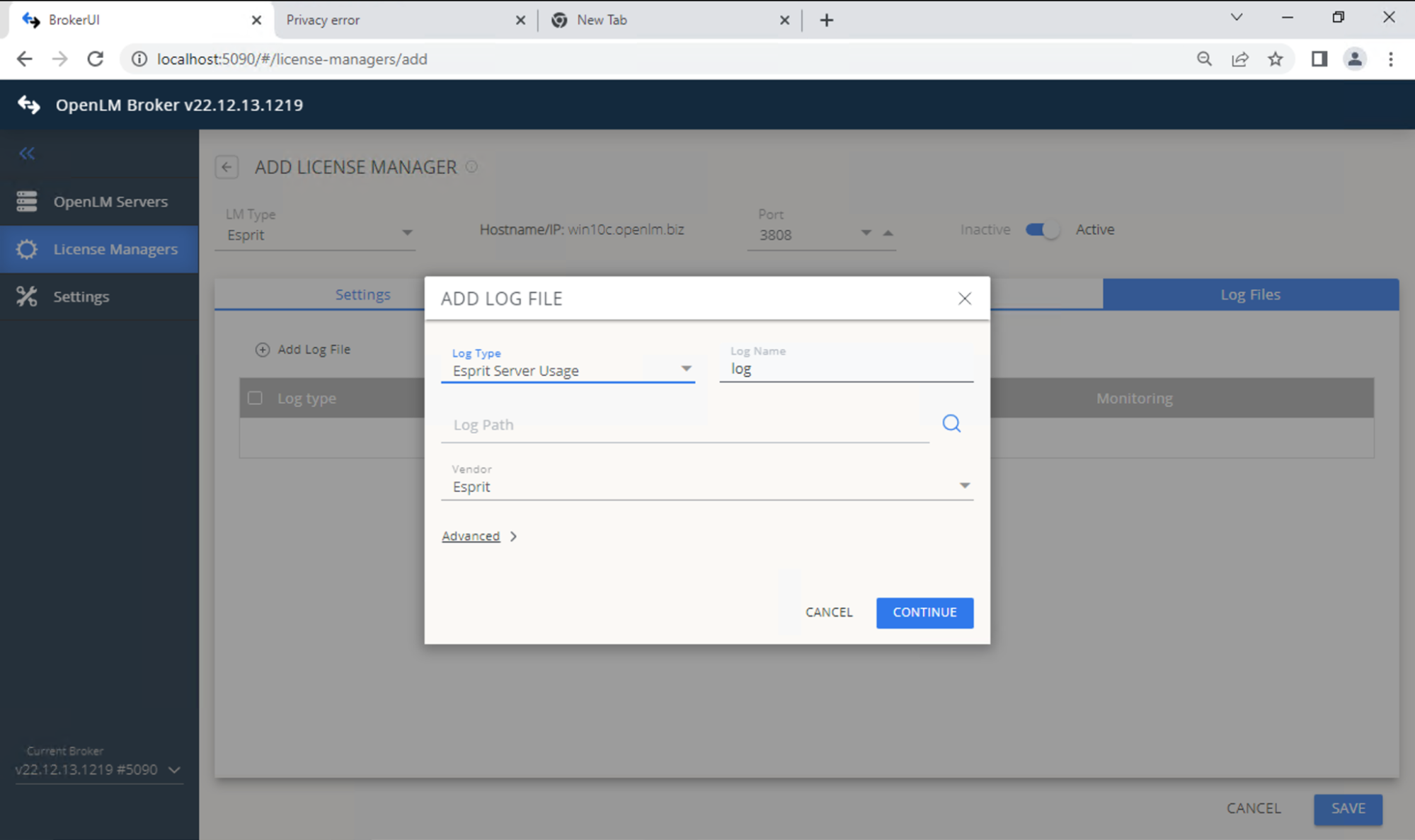

7. Go to Log File tab -> Add Log File. Configure:

   • Type: ESPRIT Server Usage
   • Log (Descriptive): name to identify the log
   • Path: DptSecLogServerUsage.txt (in ESPRIT logs folder)

   Vendor: select vendor from previous step



8. Save configuration.

9. Open OpenLM Web Interface (http://SERVER_IP:5015).

10. Approve the ESPRIT License Manager entry in License Managers Pending Approval.

Configure OpenLM Platform

1. Log in to OpenLM Platform.

2. From Menu, go to License Servers.



3. On left menu, select Pending Server

4. On the list, select the ESPRIT license manager and click on Approve and Merge



5. In OpenLM Web Interface -> Menu -> License Servers Live -> Server Statistics.

6. Ensure ESPRIT appears in the list with a green status indicator.

Note: It can take up to 3 minutes for the status to update for new connections.
