Follow these steps to configure OpenLM to monitor license usage and retrieve statistics from the L3Harris License Manager.

Requirements

Before starting, make sure you have:

OpenLM Platform
OpenLM Broker v25.x or higher installed on the same machine as L3Harris, and approve it in Broker Hub.

The Broker enables buffered communication and allows remote start/stop of the license manager service.

Diagram of how OpenLM interfaces with L3Harris

OpenLM Broker must already be installed and configured to report to OpenLM before proceeding.

Open the Broker web UI at http://localhost:5090 (or 5091, 5092 if the default port is in use).
Go to License Managers -> Add License Manager.

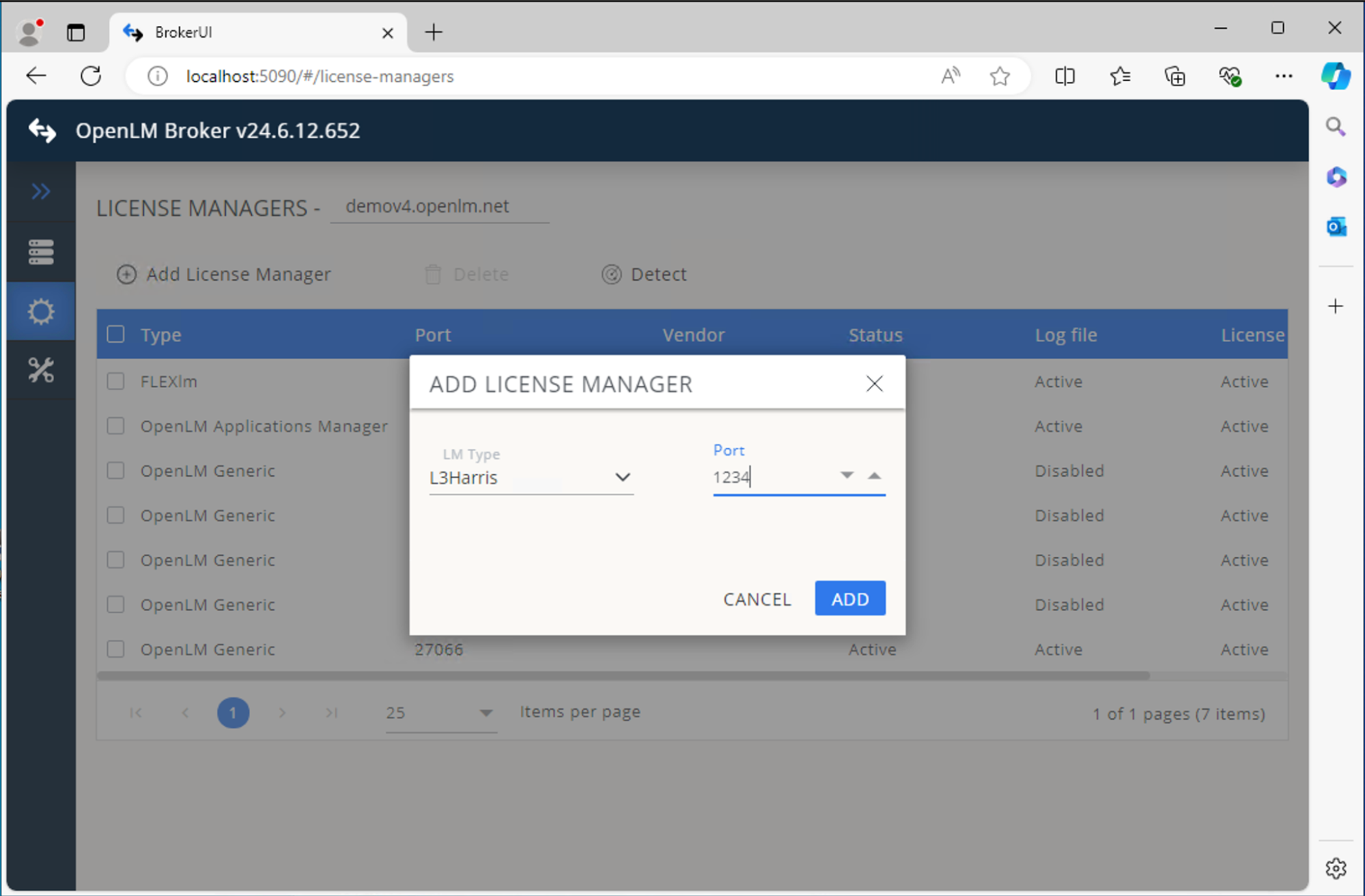

From the drop-down, select L3Harris and enter a port number. The port number is not used for data capture but is required for licensing purposes.
Click Add.
In the Commands tab, browse to the folder containing the L3Harris log file and click Apply.
In the Executable path field, specify the executable path on the L3Harris license server.
Go to Vendors and set the vendor name.

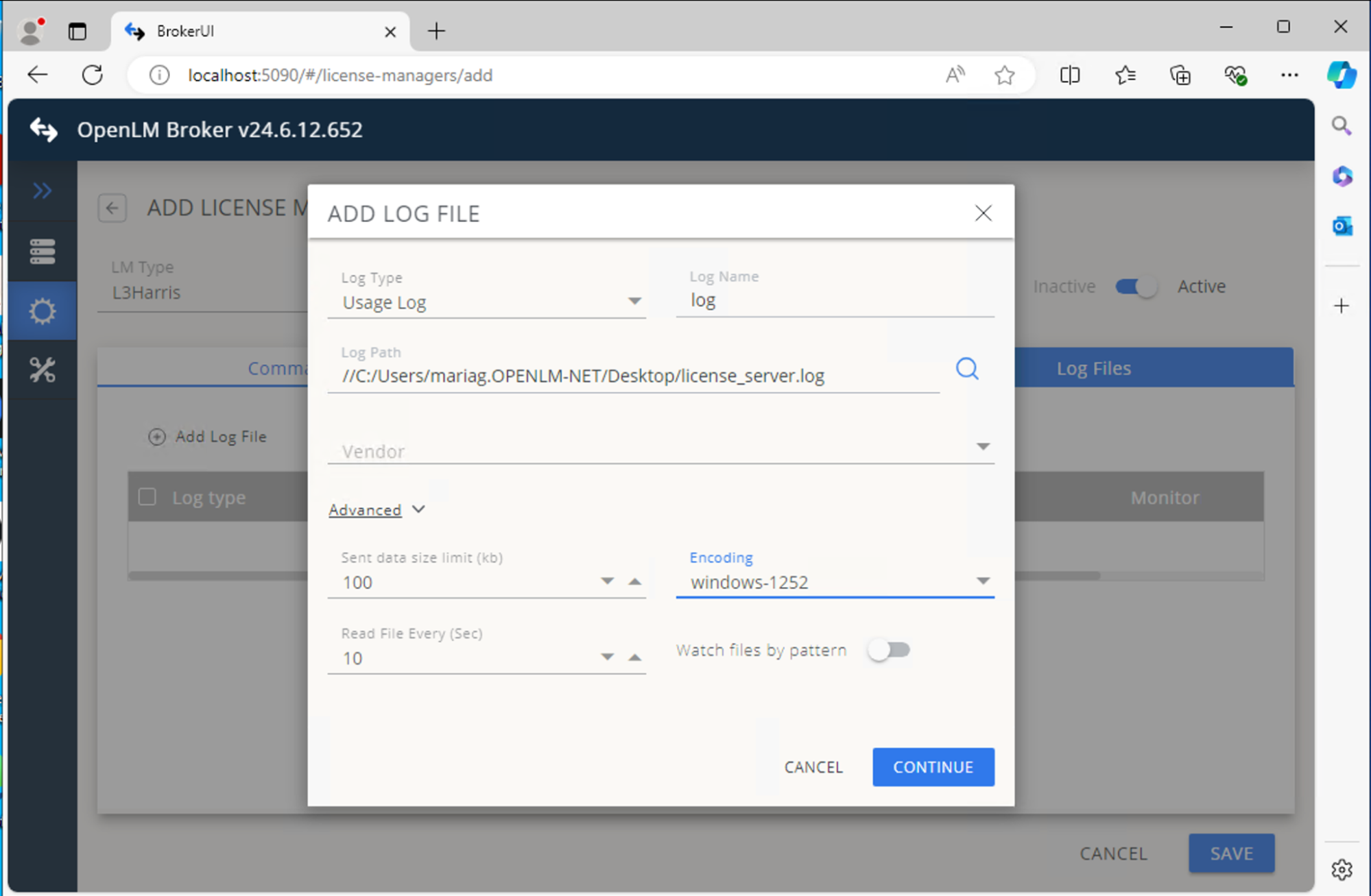

Go to Log Files -> Add Log File and configure:
- Log type - Usage Log
- Log name (descriptive) - any name to identify the log
- Log path - browse to the L3Harris logs folder
- Vendor - vendor defined in the Vendors tab
- Set data size limit (KB) - default 100
- Read file every (sec) - default 10
- Watch file by pattern - Off
- Encoding - windows-1252
Click Continue and then Save.
