Olicense

OLicense is one of the license managers supported by OpenLM. This guide explains how to configure OpenLM to interface with OLicense-Server in order to monitor license usage and obtain license statistics.

Broker method: OpenLM Broker is installed on the OLicense-Server machine, queries locally, and sends data to OpenLM Server.

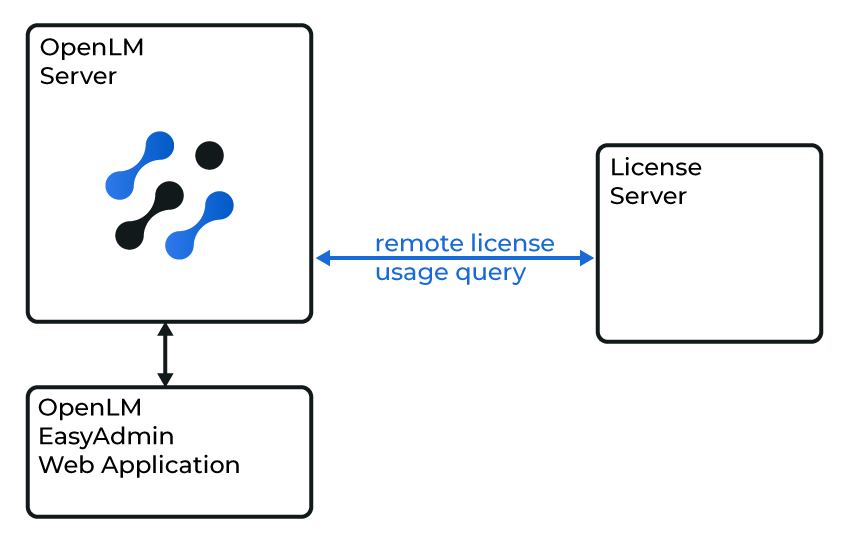

Query using OpenLM Server only (direct method)

Requirements

1. OpenLM Platform

2. OpenLM Broker v25.x or higher installed on the same machine as OLicense, and approve it in Broker Hub.

   OpenLM Broker queries OLicense locally and sends data to OpenLM Server, ensuring buffered communication during network outages



Configuring via Broker UI

1. Open Broker UI at http://localhost:5090/.

2. Go to License Managers.

   • If OLicense is detected automatically, confirm and save.

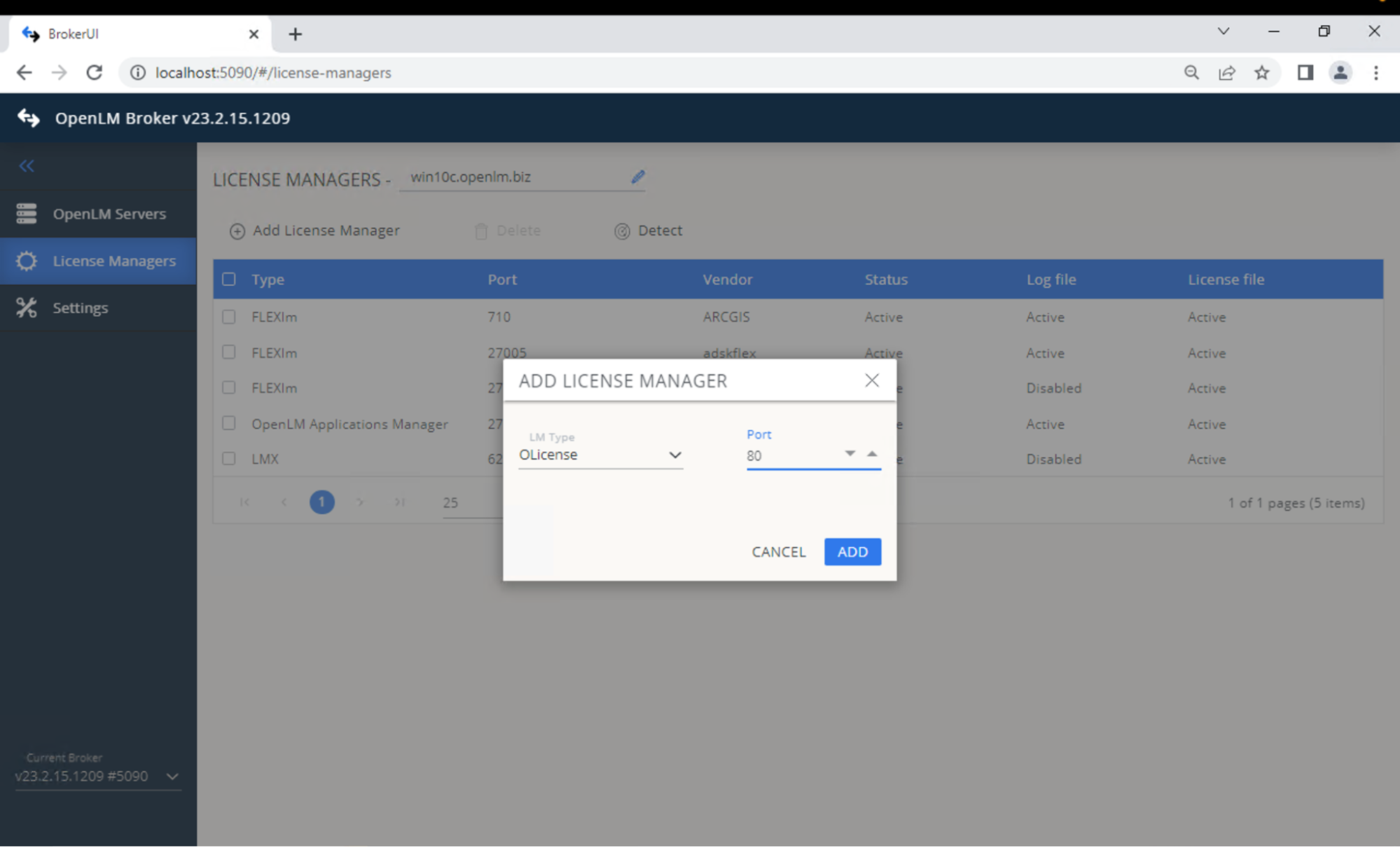

   • If not, click Add License Manager -> Select OLicense -> Enter port (default: 80) -> Click ADD.

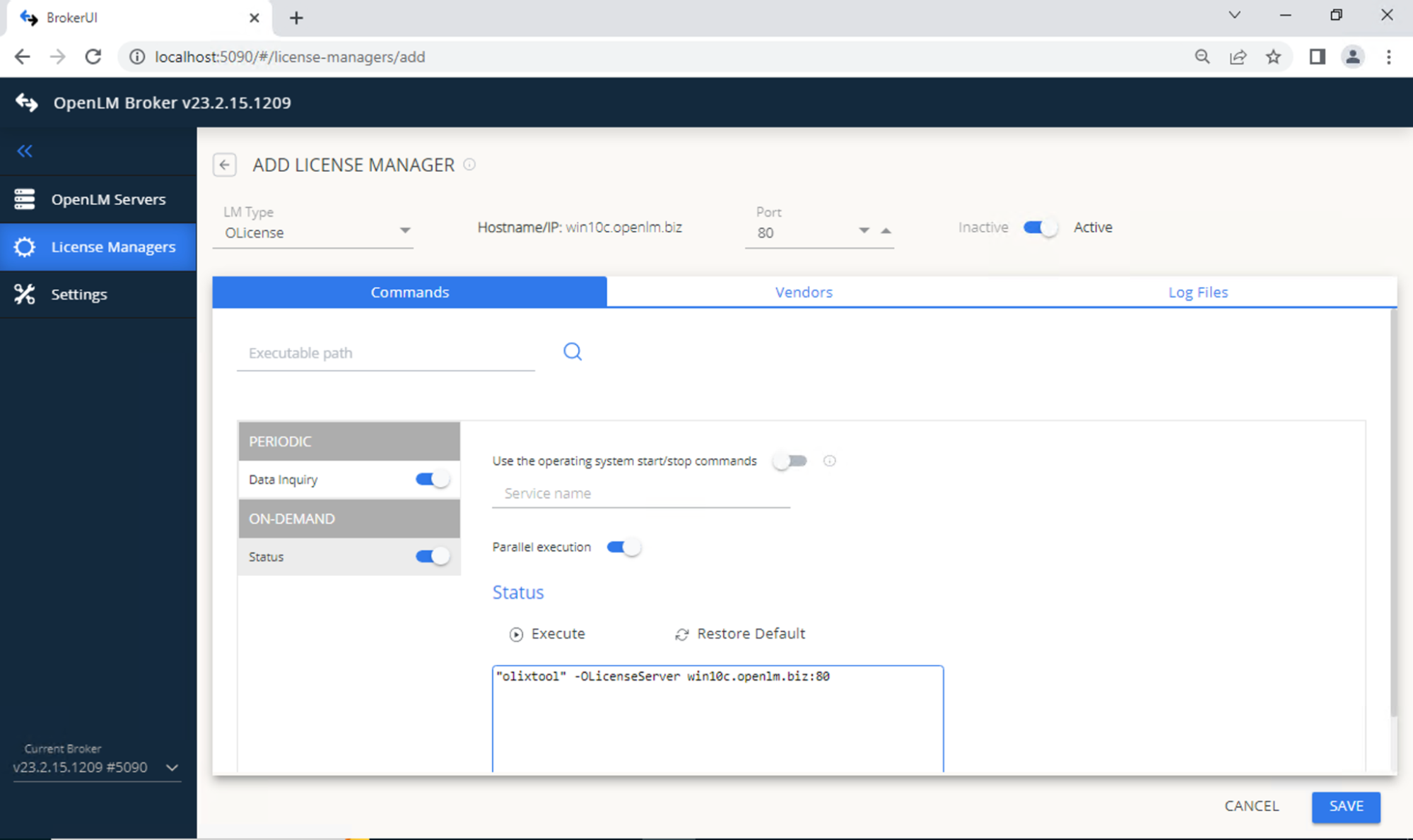

3. In Commands, set the path to olixtool.exe. Execute to confirm output.



4. In Vendors, click Add Vendor -> Enter "OLicense" -> Continue.

5. Click SAVE.

6. Configure OpenLM Server as described above.

Configure OpenLM Platform

1. Log in to OpenLM Platform.

2. From Menu, go to License Servers.



3. On left menu, select Pending Server

4. On the list, select the OLicense license manager and click on Approve and Merge



5. In OpenLM Web Interface -> Menu -> License Servers Live -> Server Statistics.

6. Ensure OLicense appears in the list with a green status indicator.

Note: It can take up to 3 minutes for the status to update for new connections.
