Innovyze

This integration enables OpenLM to monitor Innovyze for license usage, denials, and borrowed license reporting.

Requirements

1. OpenLM Platform
2. OpenLM Broker v25.x or higher installed on the same machine as Innoyze, and approve it in Broker Hub.

Monitoring capabilities and features

Item	Value
Report resolution	By second
License totals	Yes
License usage	Yes
Denials reporting	Yes
Borrowed license reporting	Yes
Expiration date reporting	No
Multiple server redundancy	No

Additionally, using OpenLM Broker allows for buffered communication and the ability to remotely start or stop the Innovyze service.

OpenLM Broker configuration

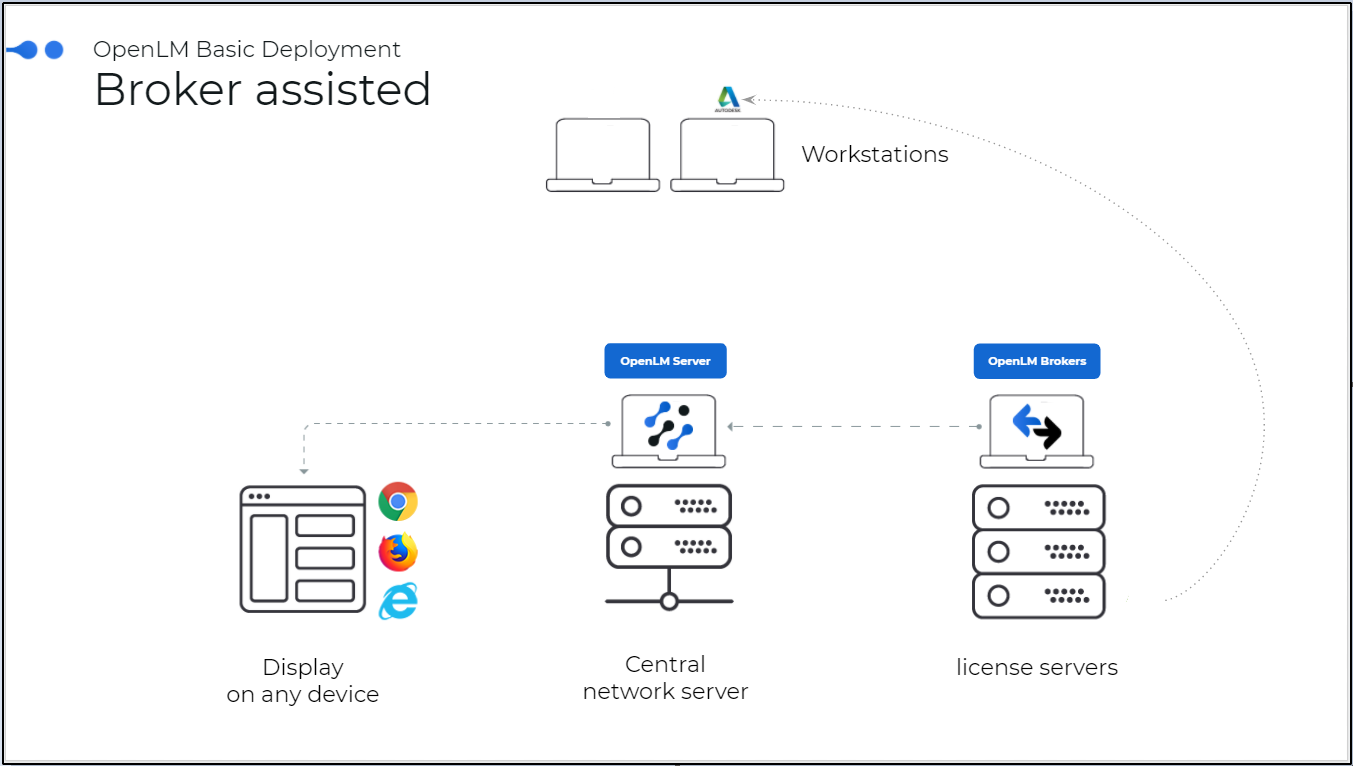

Diagram of how OpenLM interfaces with Innovyze.

OpenLM Broker reads the Innovyze LicenseMonitor log file, compiles the data, and sends it to OpenLM Server for processing.

You must have OpenLM Broker installed and reporting to OpenLM Server before starting this configuration.

Automatic configuration

1. Open Broker UI at http://localhost:5090/.

2. Go to License Managers -> Detect

3. Innoyze should appears

4. Validate and save

Configuring via Broker UI

1. Open Broker UI at http://localhost:5090/.

2. Go to License Managers -> Add License Manager.

3. Set License Manager Type to Innovyze and click Apply.

4. Under Vendors, select "Vendor Name to Be Filled," enter Innovyze, and click Apply.

5. Select the Log Files node and click Add Log File.

6. Select the newly created log node, click […], and browse to the CSV log file location (typically C:\ProgramData\InnovyzeLM#.#\Usage where #.# is the version, e.g., 6.0).

7. Click Advanced, then check Watch Files by Pattern.

8. Click Apply.

9. Click Restart Broker.

Configure OpenLM Platform

1. Log in to OpenLM Platform.

2. From Menu, go to License Servers.



3. On left menu, select Pending Server

4. On the list, select the Innoyze license manager and click on Approve and Merge



5. In OpenLM Web Interface -> Menu -> License Servers Live -> Server Statistics.

6. Ensure Innoyze appears in the list with a green status indicator.

Note: It can take up to 3 minutes for the status to update for new connections.
