CADENAS

Follow these steps to configure OpenLM to monitor license usage and retrieve license statistics from CADENAS Server.

Requirements

1. OpenLM Platform
2. OpenLM Broker v25.x or higher installed on the same machine as CADENAS, and approve it in Broker Hub.

Monitoring capabilities

Item	Value
LM Type in the Broker	Cadenas
Commands	No
Logs	Yes
Quantity	Yes
Expiration date	No
Denied	No
Borrowing	No
Allocations	No
Report resolution	Seconds

OpenLM Broker configuration

note

OpenLM Broker must be installed and configured to report to OpenLM before proceeding.

1. Open Broker UI at http://localhost:5090/.

2. Go to License Managers -> Add License Manager.

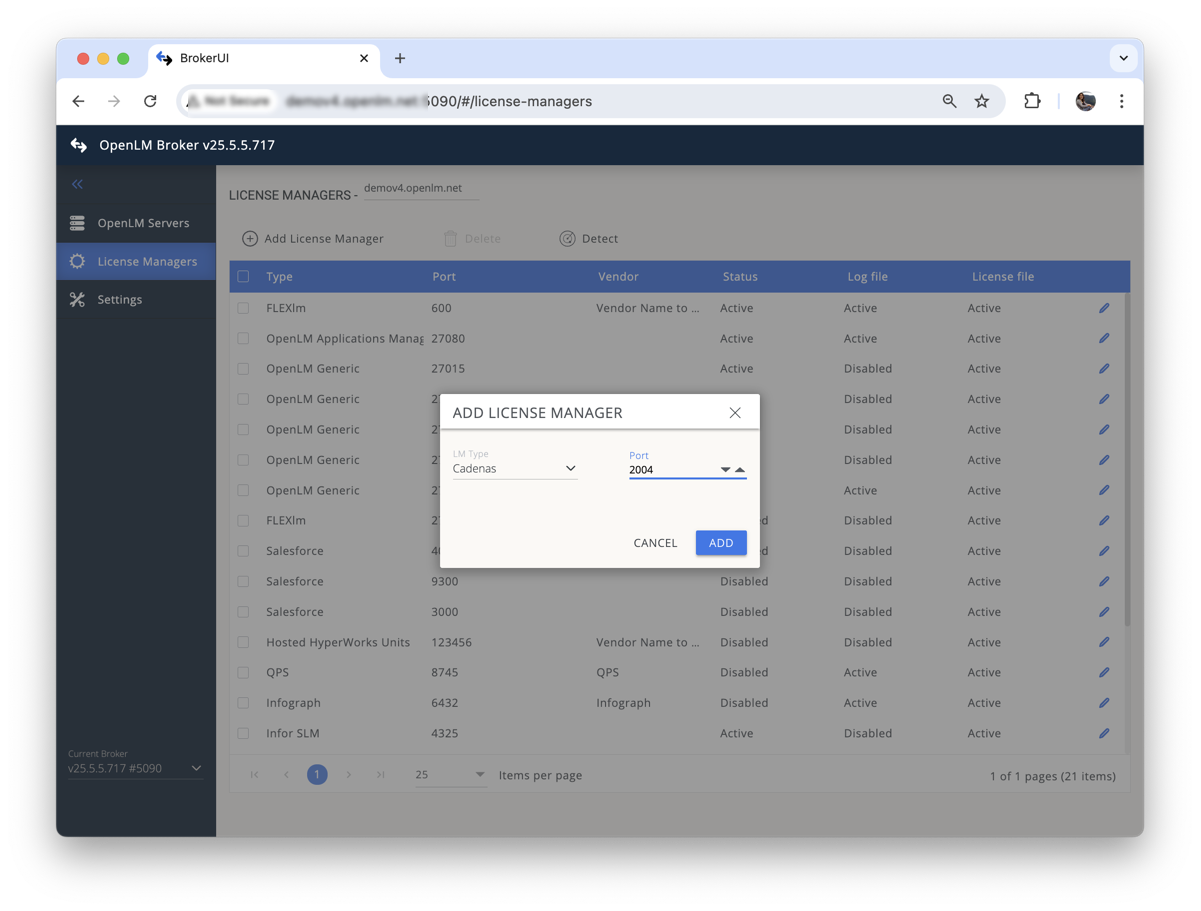

3. Select CADENAS, enter the port number, and click Add.



   Adding a CADENAS Server license manager in OpenLM Broker

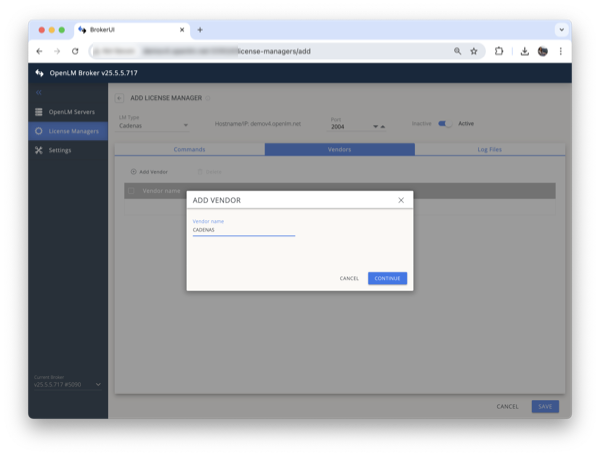

4. Go to the Vendors tab. Click Add Vendor, enter CADENAS Server, and click Continue.



5. Go to the Log Files tab. Click Add Log File. Turn off Watch file by pattern. Add the log path, then click Continue. Adding a log file for CADENAS Server in OpenLM Broker

6. Click Save.

   Configure OpenLM Platform

7. Log in to OpenLM Platform.

8. From Menu, go to License Servers.



9. On left menu, select Pending Server

10. On the list, select the Cadenas license manager and click on Approve and Merge



11. In OpenLM Web Interface -> Menu -> License Servers Live -> Server Statistics.

12. Ensure Cadenas appears in the list with a green status indicator.

Note: It can take up to 3 minutes for the status to update for new connections.
