pure::variants

Follow these steps to configure OpenLM to monitor license usage and retrieve statistics from the pure::variants License Manager.

Requirements

Before starting, make sure you have:

1. OpenLM Platform
2. OpenLM Broker v25.x or higher installed on the same machine as Pure::variants, and approve it in Broker Hub.

Monitoring capabilities

Item	Value
Report resolution	By minute
License totals	Yes
License usage	Yes
Denials reporting	No
Borrowed license reporting	No
Expiration date reporting	No
Multiple server redundancy	No

OpenLM Broker configuration

OpenLM Broker must already be installed and configured to report to OpenLM before proceeding.

Configuring via Broker UI

1. Open Broker UI at http://localhost:5090/.

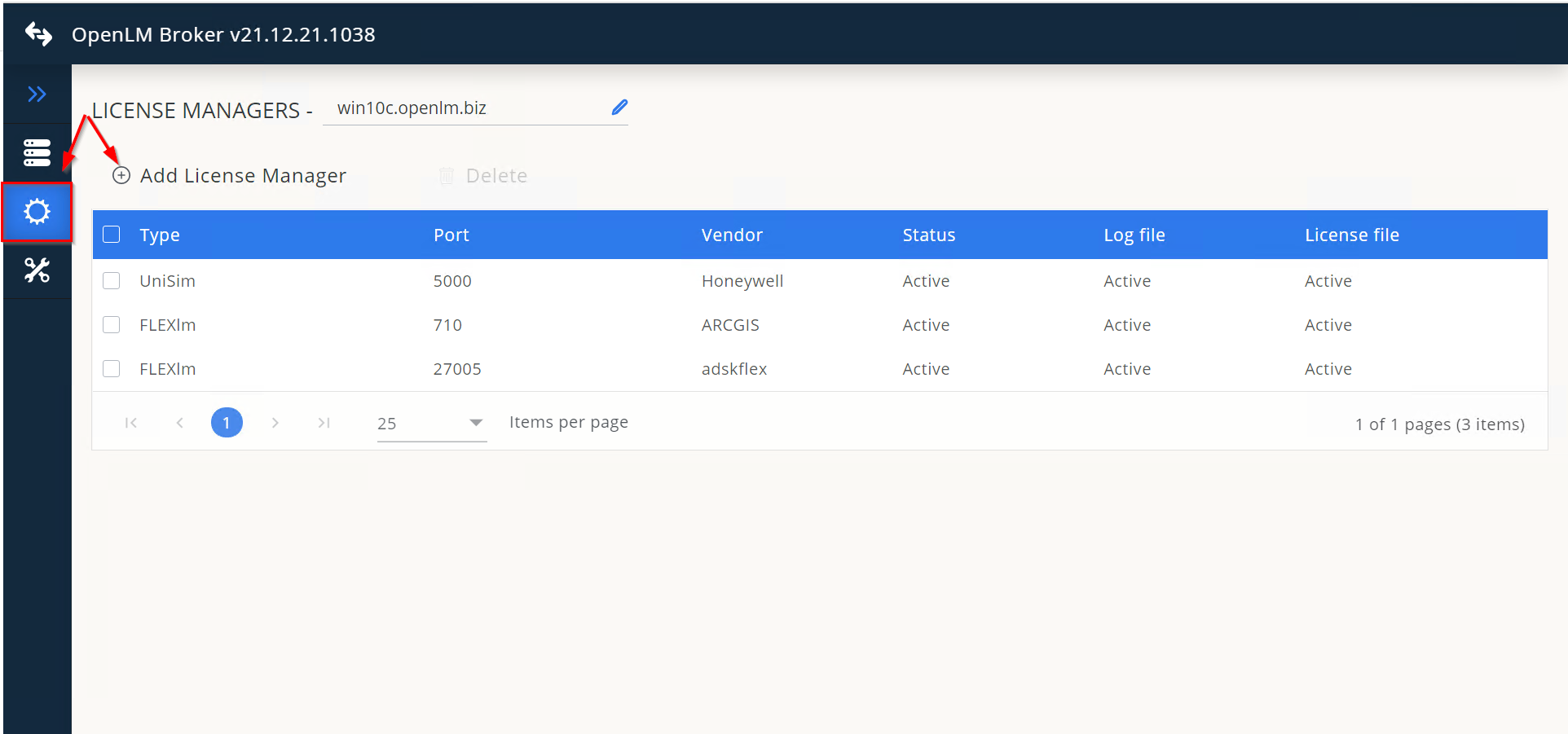

2. Go to License Managers -> Add License Manager.



3. From the drop-down, select Pure Variants and enter the port number (e.g., 888). Click Add.

4. In the Settings tab, make sure Watch License File is off.

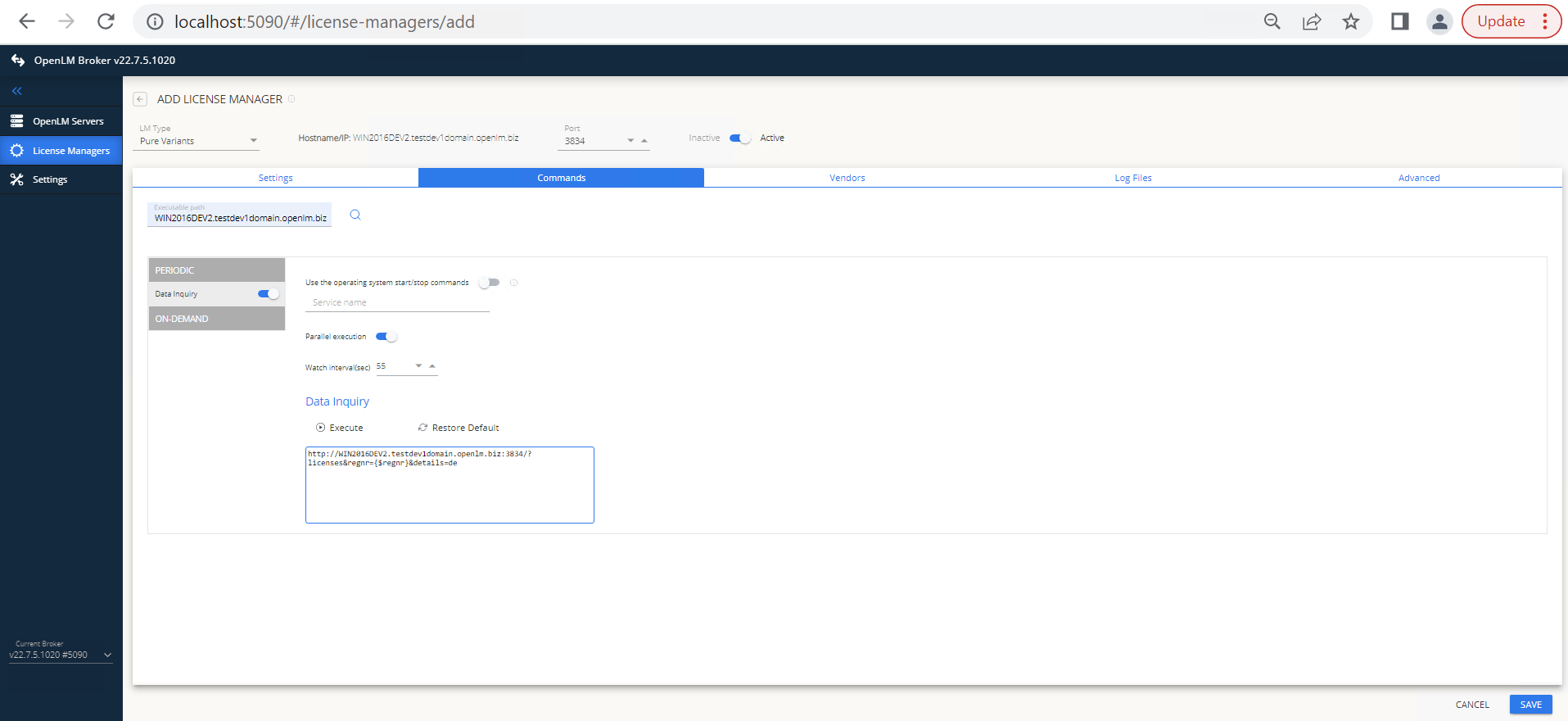

5. Go to the Commands tab and enter the executable path for pure::variants.

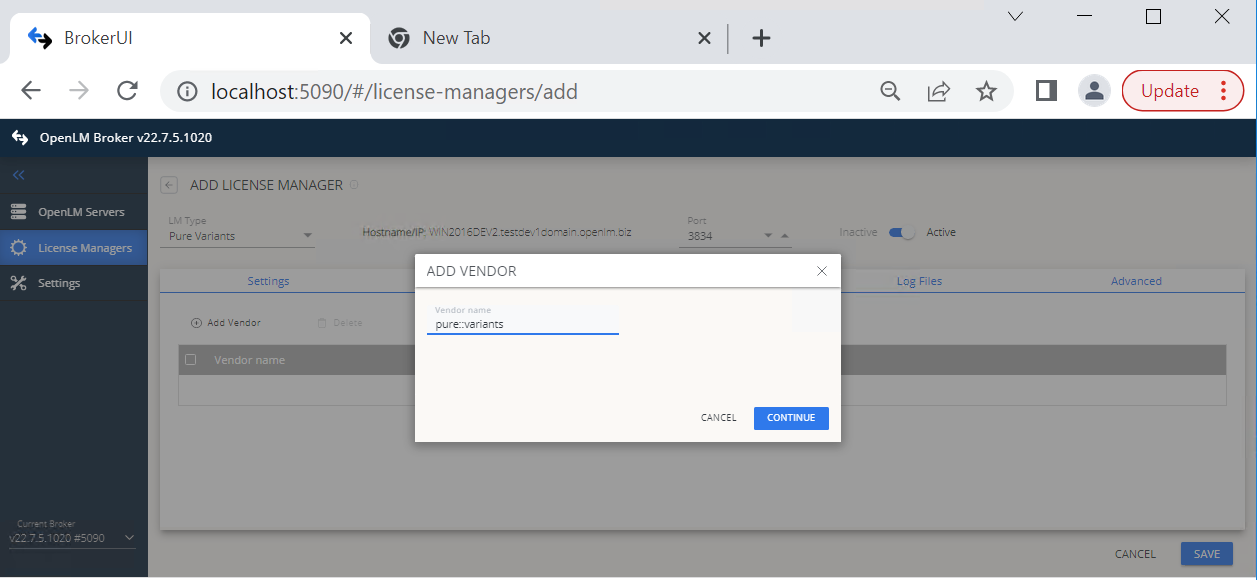

6. Go to the Vendors tab -> Add Vendor, enter pure::variants, and click Continue.



7. Go to the Advanced tab and enter the pure::variants login and password.

8. Click Save.

Configure OpenLM Platform

1. Log in to OpenLM Platform.

2. From Menu, go to License Servers.



3. On left menu, select Pending Server

4. On the list, select the Pure::Variants license manager and click on Approve and Merge



5. In OpenLM Web Interface -> Menu -> License Servers Live -> Server Statistics.

6. Ensure Pure::Variants appears in the list with a green status indicator.
